Röhren Tubes Lampes Tubos 1S5 .............. 5Z4GT 6A7 .................. 6X4 7A7................... 80S 140NG ........... 1883 A247 .............. AZ41 B405 ............. BCH1 C443 ............... CY2 D213 ......... DZ1508 E415 .............. EZ81 G354 ............. GZ41 H210 ..........HP4101 L410 ................ LP2 MH4 ............ MS4B N78 P43 ................ PY88 RE304 ........ RS4145 S24 ............ Ste1300 TAB2 ......... TM-BG U12 ............... UY85 V6 ................... VY2 W77 ....... W4110WI X78 .............. X4123 Röhrenlager	5Z4

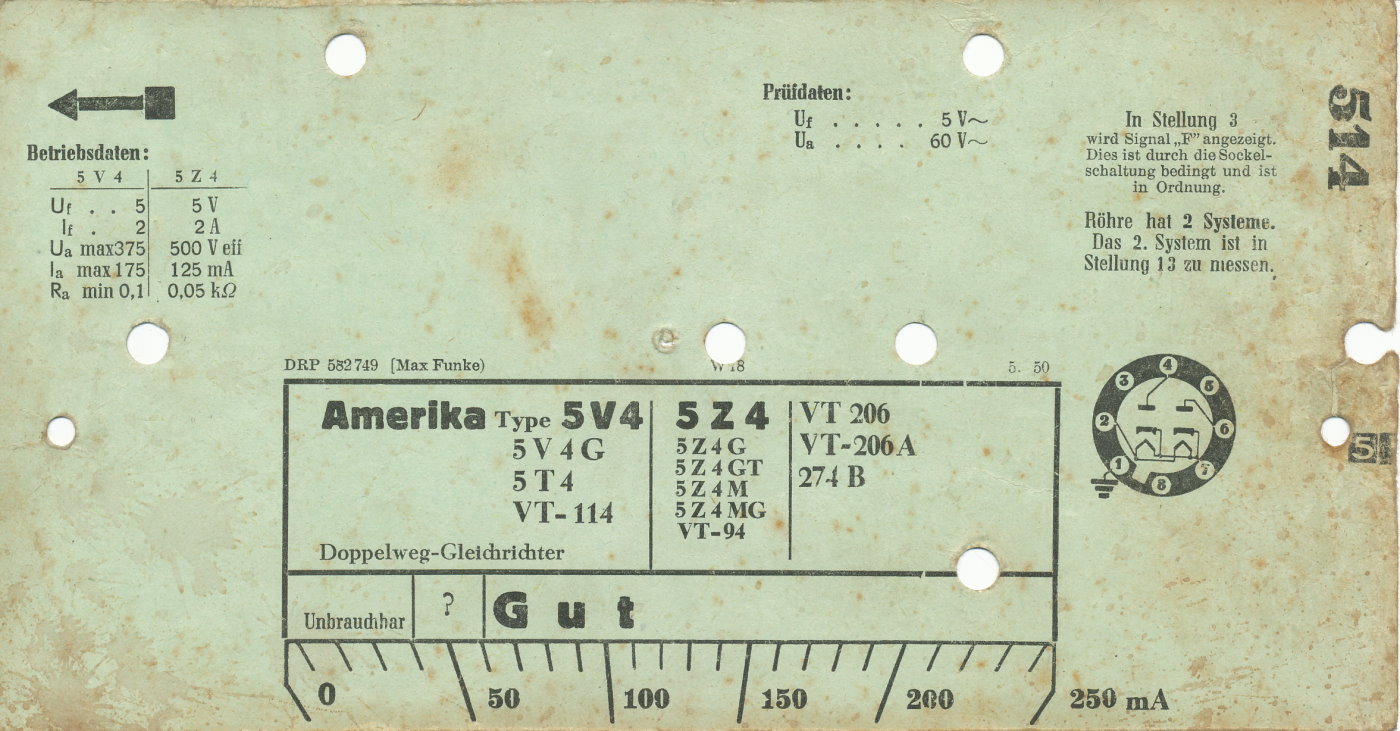

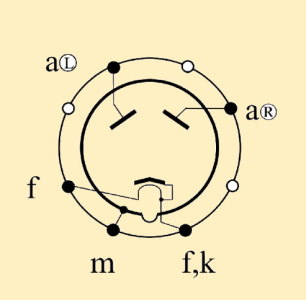

				Zweiweg-Gleichrichter / Full wave rectifier / Redresseur à deux voies Stromversorgung / Power supply / Alimentation Oktalsockel K8A / Octal K8A / Octal K8A Uf = 5 V; If = 2 A; direkt ~ = Ua = 2×350 V; Ia = 125 mA Funke 514

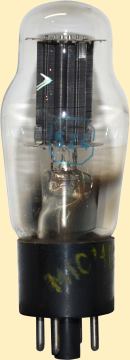

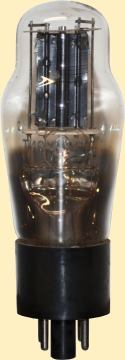

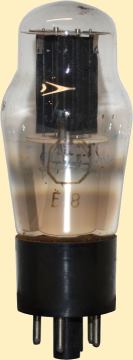

	Grammont + Lager 5Z4	Grammont + Lager 5Z4	Michigan 0% Lager 5Z4
