Triode (3)
Niederfrequenzverstärkung / Audio frequency amplification / Gain audiofréquence

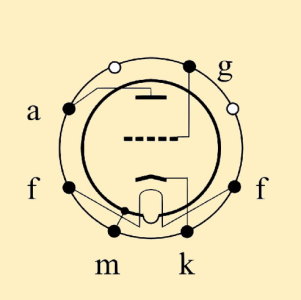

Oktal 8-Stift Oc-8 (K8A) / Octal 8-Pin Oc-8 (K8A)
Uf = 6,3 V; If = 0,3 A; ~ =
Ua = 250 V; Ia = 10 mA

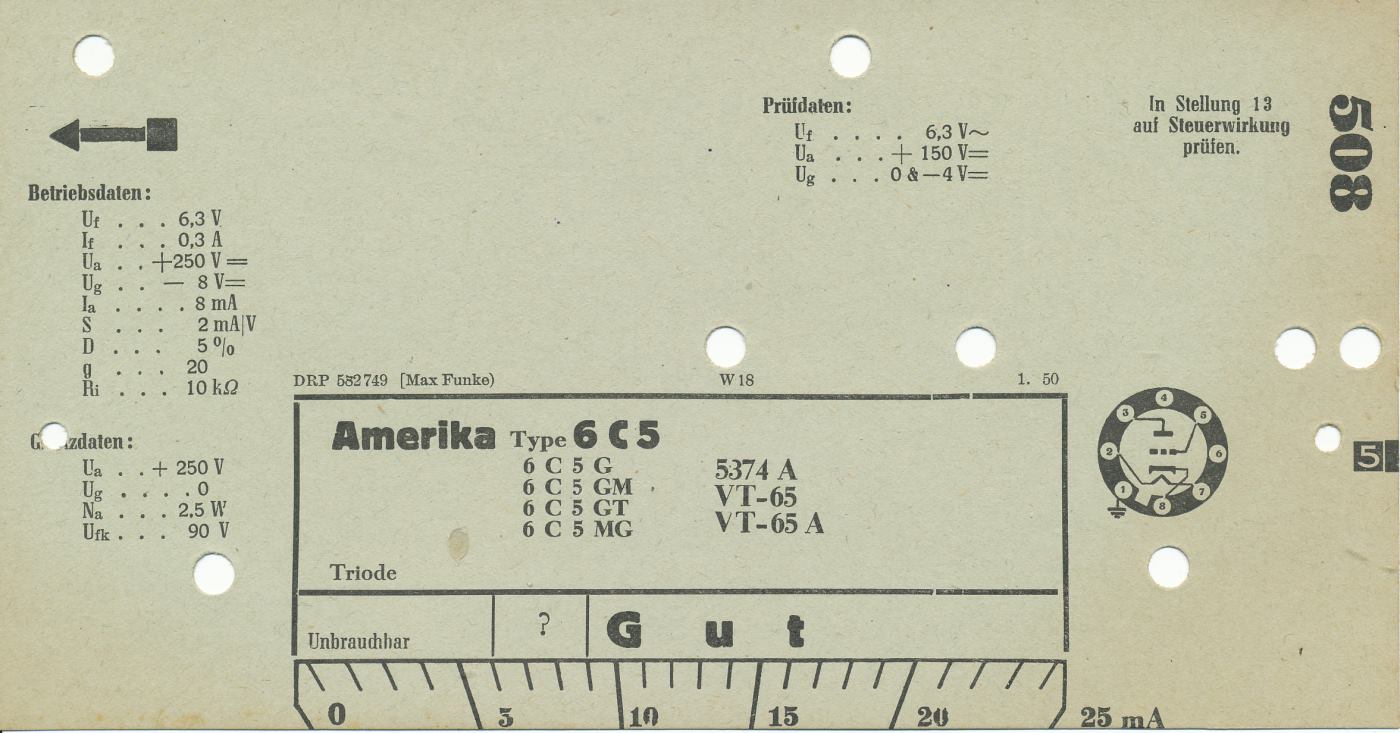

Funke 508











Visseaux +

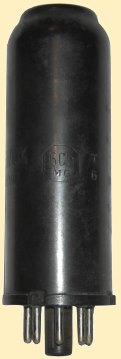

Radio à 8 Lampes (6K7)
