6X4


Röhren
Tubes
Lampes
Tubos

1S5 .............. 5Z4GT

6A7 .................. 6X4

7A7................... 80S

140NG ........... 1883

A247 .............. AZ41

B405 ............. BCH1

C443 ............... CY2

D213 ......... DZ1508

E415 .............. EZ81

G354 ............. GZ41

H210 ..........HP4101

L410 ................ LP2

MH4 ............ MS4B

N78

P43 ................ PY88

RE304 ........ RS4145

S24 ............ Ste1300

TAB2 ......... TM-BG

U12 ............... UY85

V6 ................... VY2

W77 ....... W4110WI

X78 .............. X4123

Röhrenlager



Sorry


Zweiweg-Gleichrichter / Full-Wave Rectifier / Redresseur à deux voies
Stromversorgung / Power-supply / Alimentation
Miniatur 7-Stift Mi-7 (B7G) / Miniature 7-Pin Mi-7 (B7G)
Uf = 6,3 V; If = 0,6 A; ~ =
Ua = 2×325 V; Ia = 70 mA
6X4 = EZ90

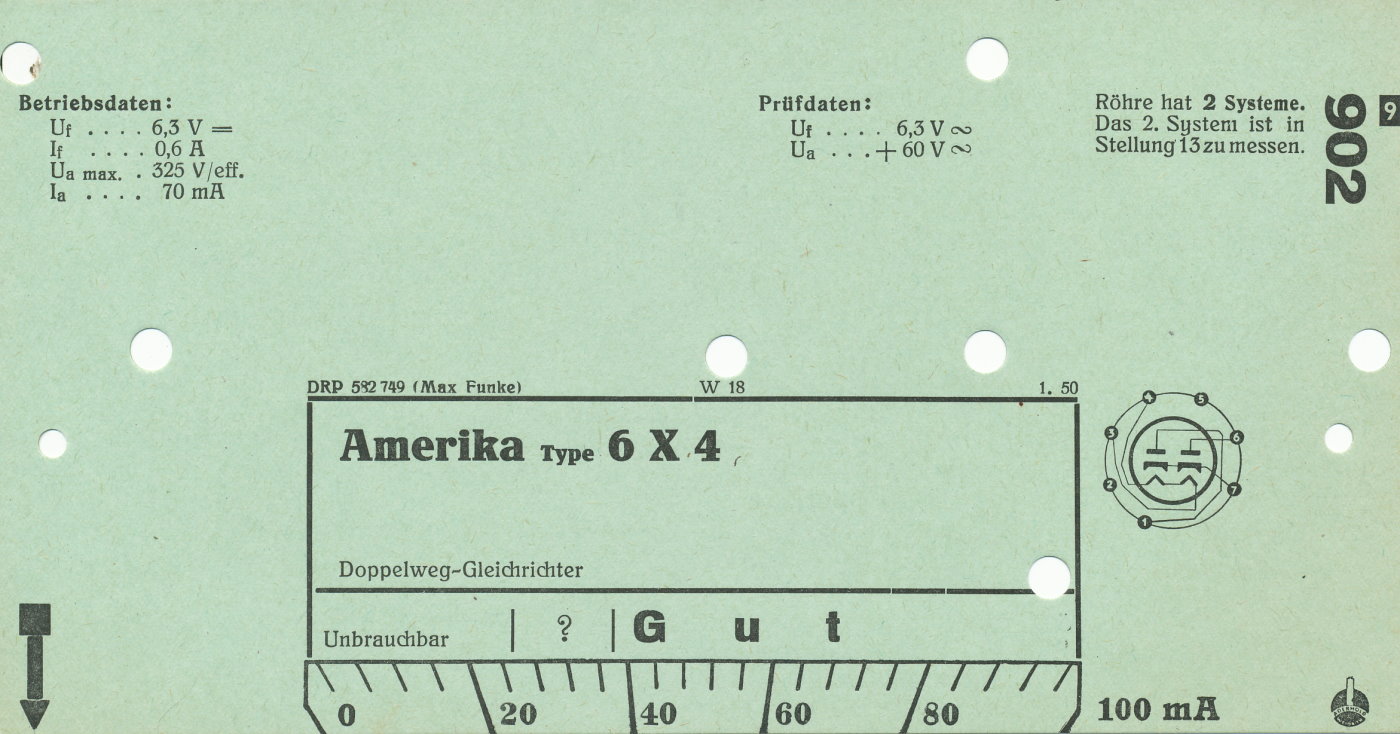

Sorry Funke 902

Sorry

Sorry

Sorry

Sorry

Sorry

Sorry

Visseaux

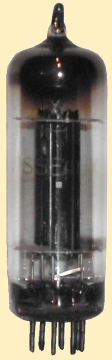

Arphone RA552

RCA

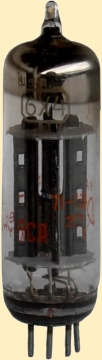

Bell Howell Oscilloscope 34

Visseaux
Despaux DI 549

Grammont +
Grammont 5015

Philips defekt
LMT 205

Visseaux
LMT 2053

Sorry

Sorry

Sorry

Sorry

Sorry



Mazda
Philco 807 D-5007

Grammont +
Reela Ouragan

Grammont 50%
RTA CS450

Tungsram +
Schneider Nocturne 52

Grammont 50%

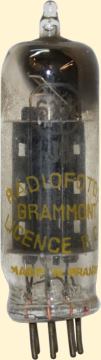

Schneider Romance
