Röhrenlager



Zweiweg-Gleichrichter / Full-Wave Rectifier / Redresseur à deux voies
Stromversorgung / Power supply / Alimentation

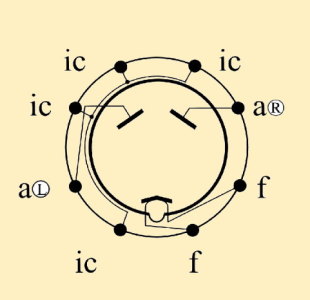

Rimlock 8-Stift Ri-8 (B8A) / European 8-Pin Miniature Ri-8 (B8A)
Uf = 4 V; If = 0,75 A; ~ =
Ua = 2 × 500 V (2 × 300 V)
Ia = 60 mA (70 mA)

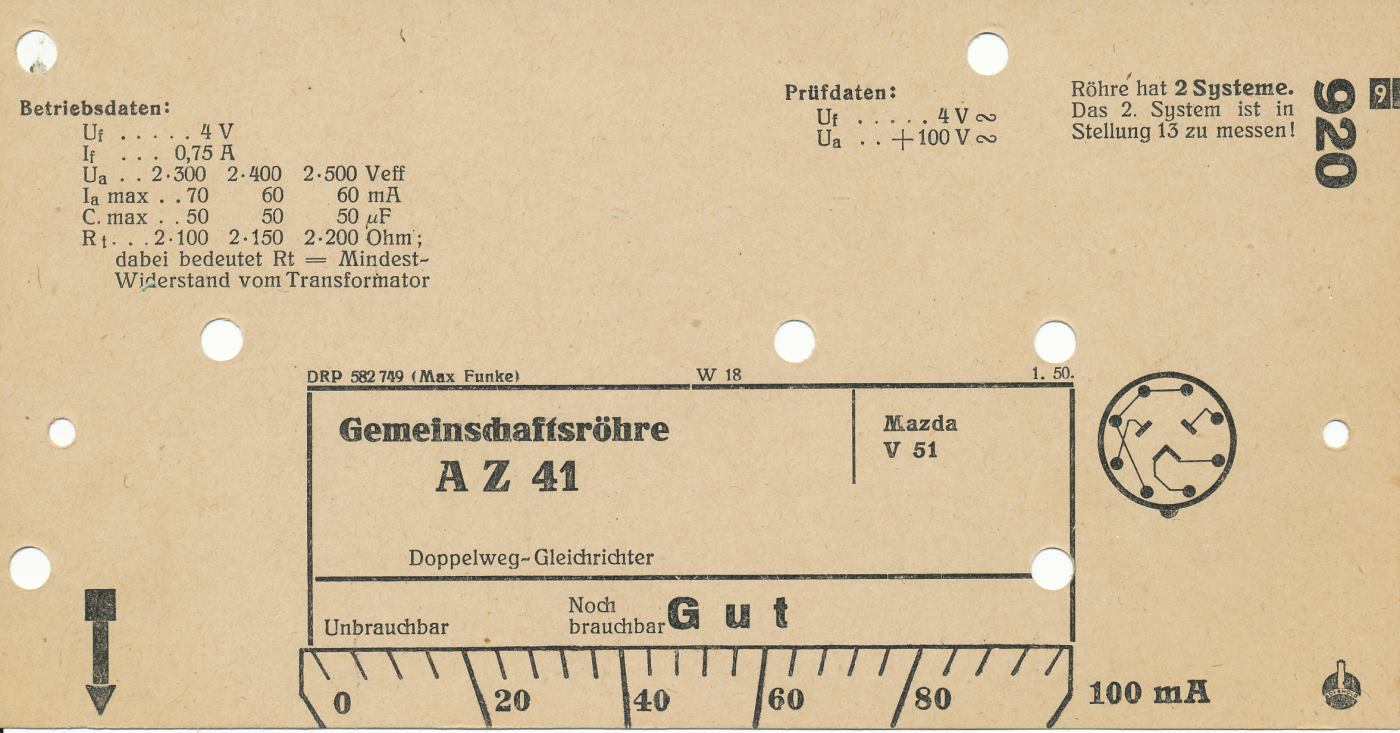

Funke 920

Philips
Atlantic A104A

Dario
Atlantic A92A

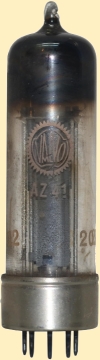

Valvo
Loewe-Opta 4651W

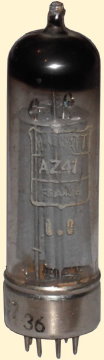

Dario +
Phénix Constellation

Philips +
Philips BF323

Philips
Philips BF406A

Miniwatt +
Philips BF491A-05

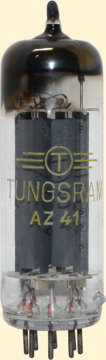

Tungsram +
Philips BF523

Philips ++
Philips BX700A

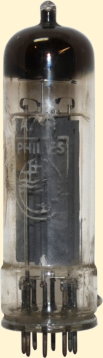

Philips ?
Philips BX700A

Dario
Radiola A490A03

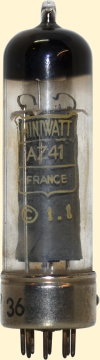

Miniwatt +
Schneider Prelude

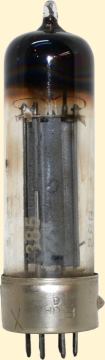

Siemens +
Siemens SH712W

Siemens +
Siemens SH607W
