Polytron - Netzgerät für Fernspeisung Pa146/001bu - 1980 ?
Polytron; Bad Wildbad (D)
Deutschland / Germany / Allemagne / Alemania
Stromversorgung / Power suppley / Alimentation en courant / Fuente de alimentación
Plastik / Modern plastics / Plastique moderne / Plástico moderno
Gerät zur Wandmontage / Wall mounting device / Dispositif de montage mural / Dispositivo de montaje en la pared
76 mm × 100 mm × 46 mm / 3.0 in × 3.9 in × 1.8 in
300 g / 11 oz

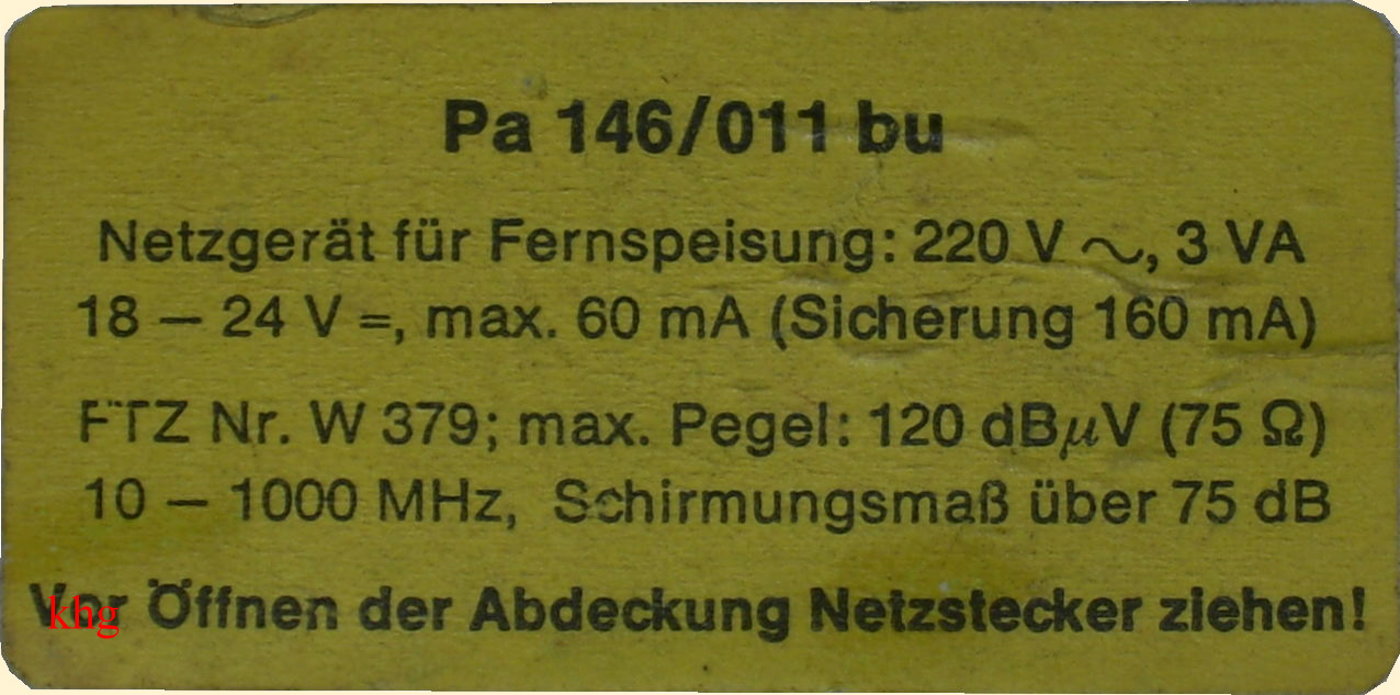

220 V ~
U: 18 - 24 V =; Amax: 60 mA

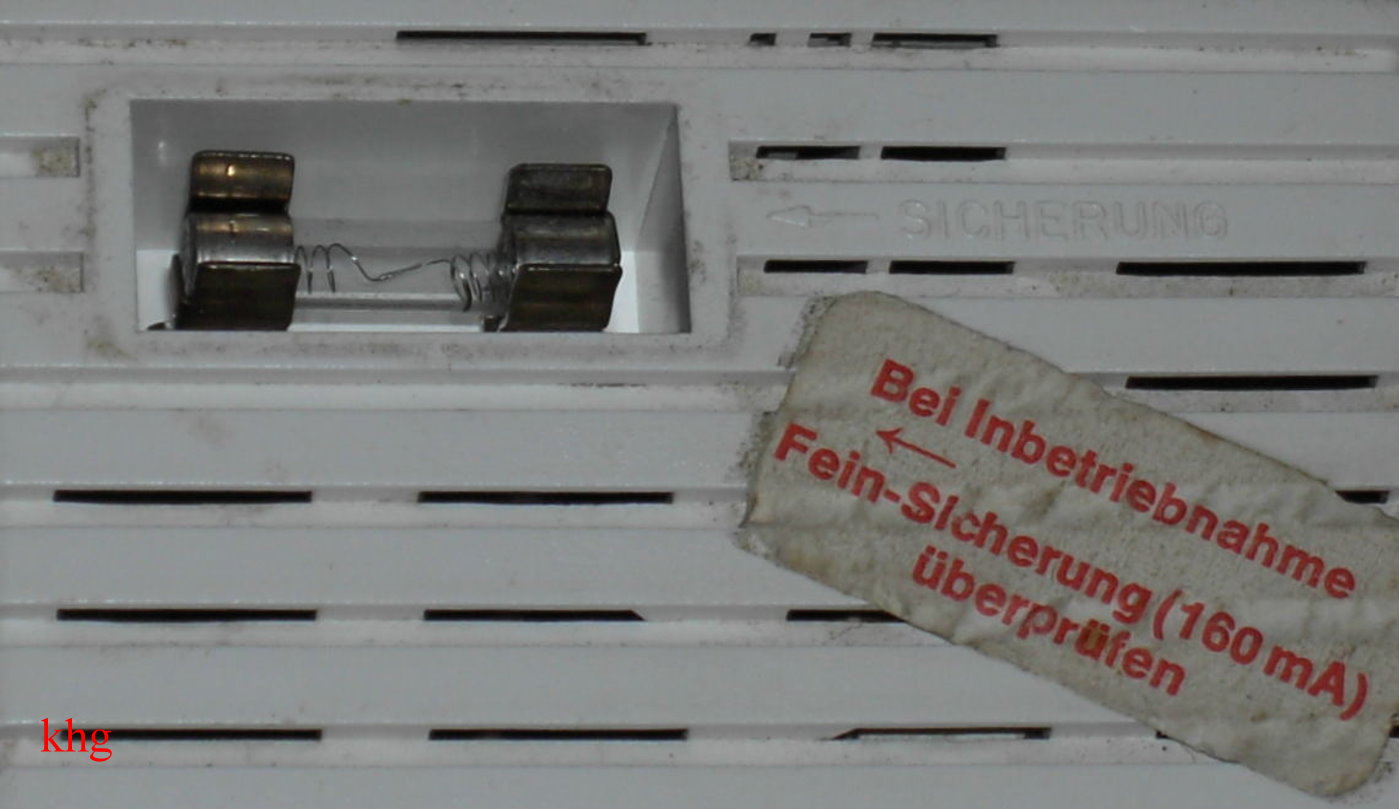

mit Sicherung 160 mA; max. Pegel: 120 dBµV
Frequenzdurchlass: 10 - 1000 MHz; Schirmungsmaß über 75 dB
Hersteller
Manufacturer
Fabricant
Fabricante
