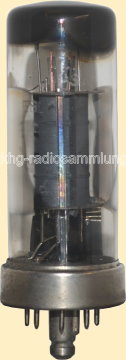

Zweifach Diode - Pentode / Double Diode - Pentode (2 × 2 + 5)
Endstufe / Power Output
Loktal 8-Stift Lo-8 (B8G) / Loctal 8-Pin Lo-8 (B8G)
Uf = 6,3 V; If = 0,8 A; ~ =
Ua = 250 V; Ia = 36 mA
Ug1 = - 6 V; Ug2 = 250 V


Funke 366
Funke 367



Dario
Philips BF594A

Miniwatt +
Philips BX373A

Dario +
Radiola RA230

Dario +
Radiola RA841A

Philips --
