Zweifach Triode / Double Triode (3 + 3)
Niederfrequenzverstärkung / Audio frequency amplification / Gain audiofréquence
Noval- Miniatur 9-Stift B9A / American Small Button 9-Pin B9A
Uf = 12,6 V; If = 0,15 A; ~ =
Triode R: Ua = 250 V; Ia = 1,2 mA
Triode L: Ua = 100 V; Ia = 0,5 mA
Ug1 = - 2 V

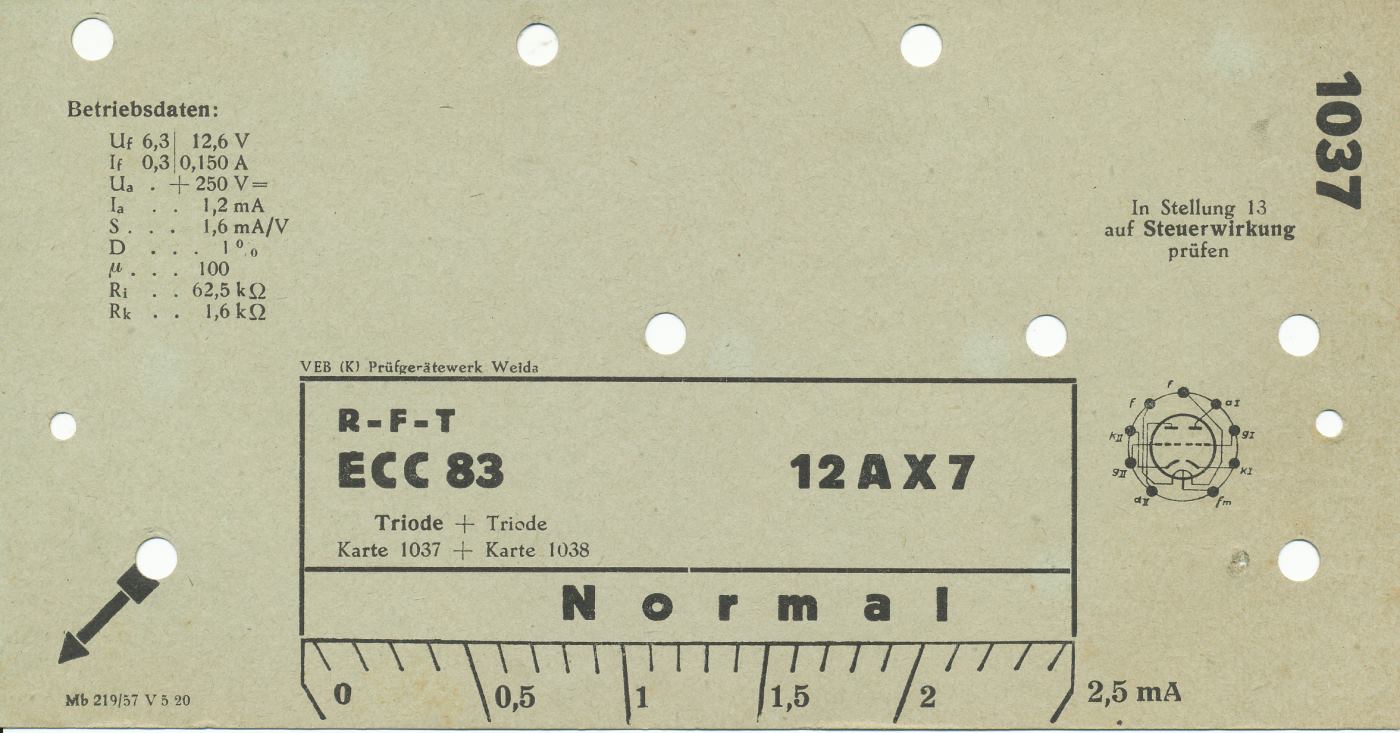

Weida 1037

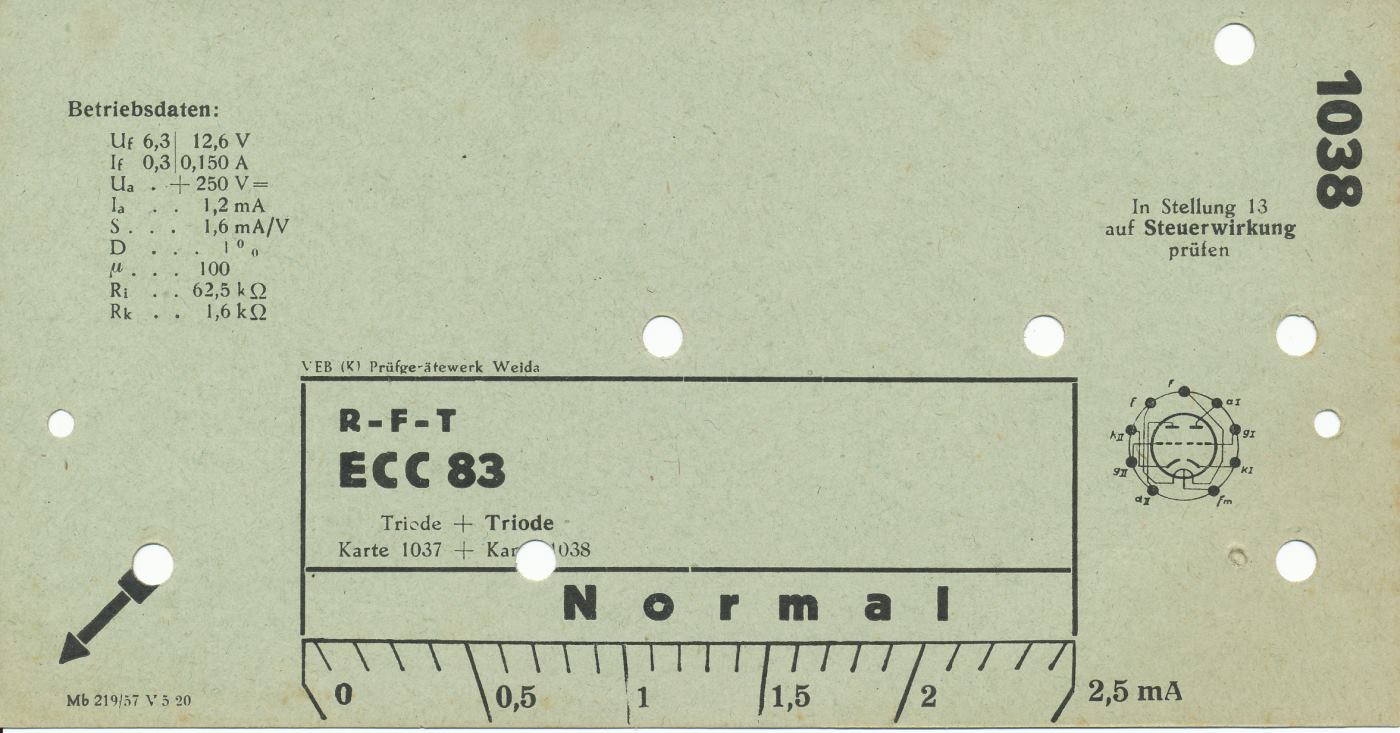

Weida 1038

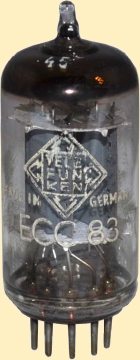

Telefunken
Blaupunkt Salerno 2230

Valvo +

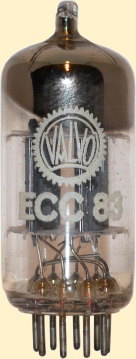

Grundig Stereo 4016

Telefunken

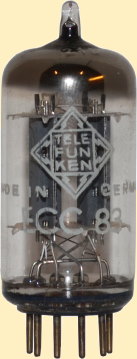

Grundig TK14

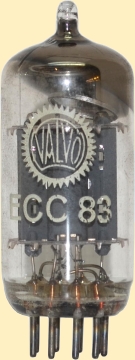

Valvo +
Loewe-Opta 4761W

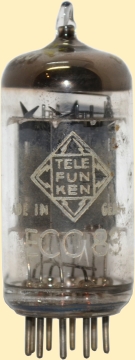

Telefunken 55%
Nordmende U320

Valvo 50%
Nordmende E330

Valvo 55%
Nordmende E330

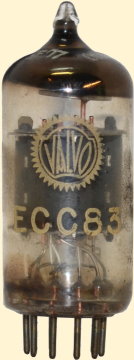

Valvo +
Philips B5D11A

Siemens 35%

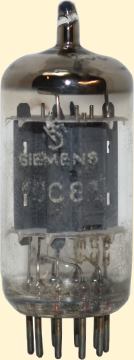

Siemens H9

Siemens 45%

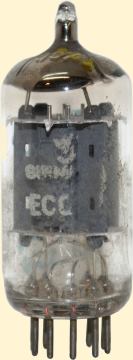

Siemens H9

Valvo +
Staudigl 667

Siemens 45%
Saba Freudenst. 100

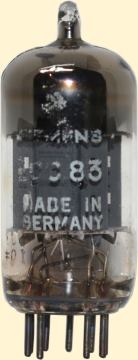

Siemens 50%
Saba Freudenst. 125

FWErfurt
TeKaDe W688

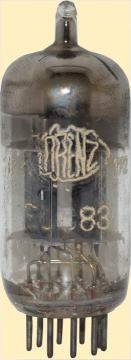

Lorenz 55%
Lager ECC83

Siemens 60%
Lager ECC83

Valvo 50%
Lager ECC83

Valvo 50%
Lager ECC83
