Röhrenlager

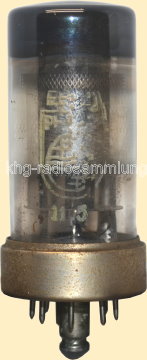

Triode-Heptode (3 + 7)
Oszillator, Mischer und Regelung / Frequency converter and controlling / Changeuse de fréquence et commande
Loktal 8-Stift Lo-8 (B8G) / Loctal 8-Pin Lo-8 (B8G)
Uf = 6,3 V; If = 0,35 A; ~ =
Triode: Ua = 100 V (250 V); Ia = 12 mA (4 mA)
Hexode: Ua = 100 V (250 V); Ia = 3 mA (5,3 mA)


Funke 363
Funke 364

TeKaDe
Philips BF594A

Miniwatt ++
Philips BX373A

Miniwatt ++
Philips BX373A

??? --
Philips BX690A

TeKaDe ++
Radiola RA230

??? ++
Radiola RA230











??? +
Radiola RA841A
