ECL11


Röhren
Tubes
Lampes
Tubos

1S5 .............. 5Z4GT

6A7 .................. 6X4

7A7................... 80S

140NG ........... 1883

A247 .............. AZ41

B405 ............. BCH1

C443 ............... CY2

D213 ......... DZ1508

E415 .............. EZ81

G354 ............. GZ41

H210 ..........HP4101

L410 ................ LP2

MH4 ............ MS4B

N78

P43 ................ PY88

RE304 ........ RS4145

S24 ............ Ste1300

TAB2 ......... TM-BG

U12 ............... UY85

V6 ................... VY2

W77 ....... W4110WI

X78 .............. X4123

Röhrenlager



Sorry


Triode - Tetrode (3 + 4)
NF-Triode und End-Tetrode / AF-Triode and Output Tetrode

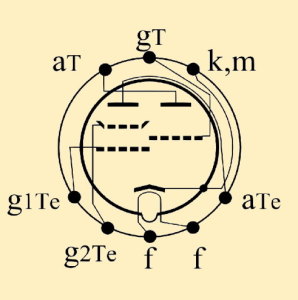

Stahl [3+5]-Stift Y8A / German Steel 8-Pin Y8A
Uf = 6,3 V; If = 1 A; ~ =
Triode: Ua = 250 V; Ia = 2 mA
Tetrode: Ua = 250 V; Ia = 36 mA
Ug1T = - 2,5 V; Ug1Te = - 6 V; Ug2Te = 250 V

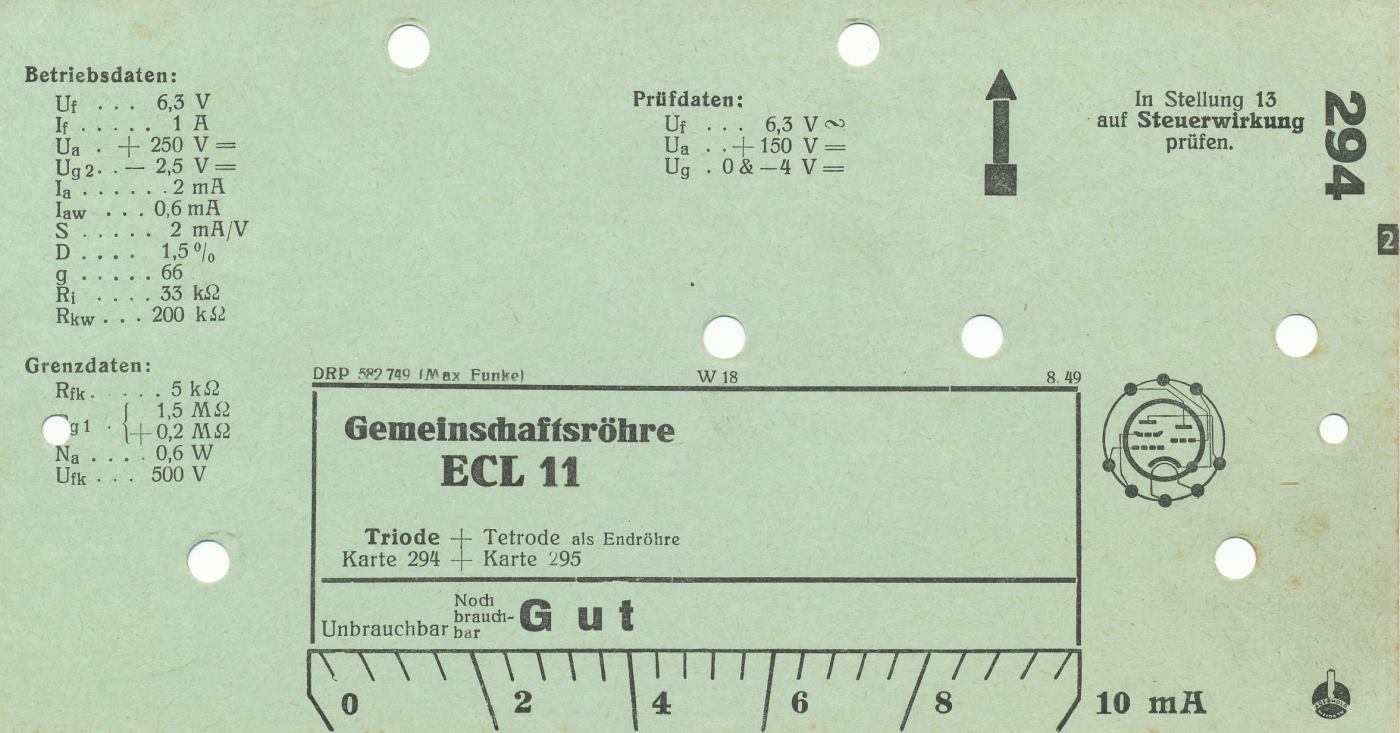

Sorry Funke 294

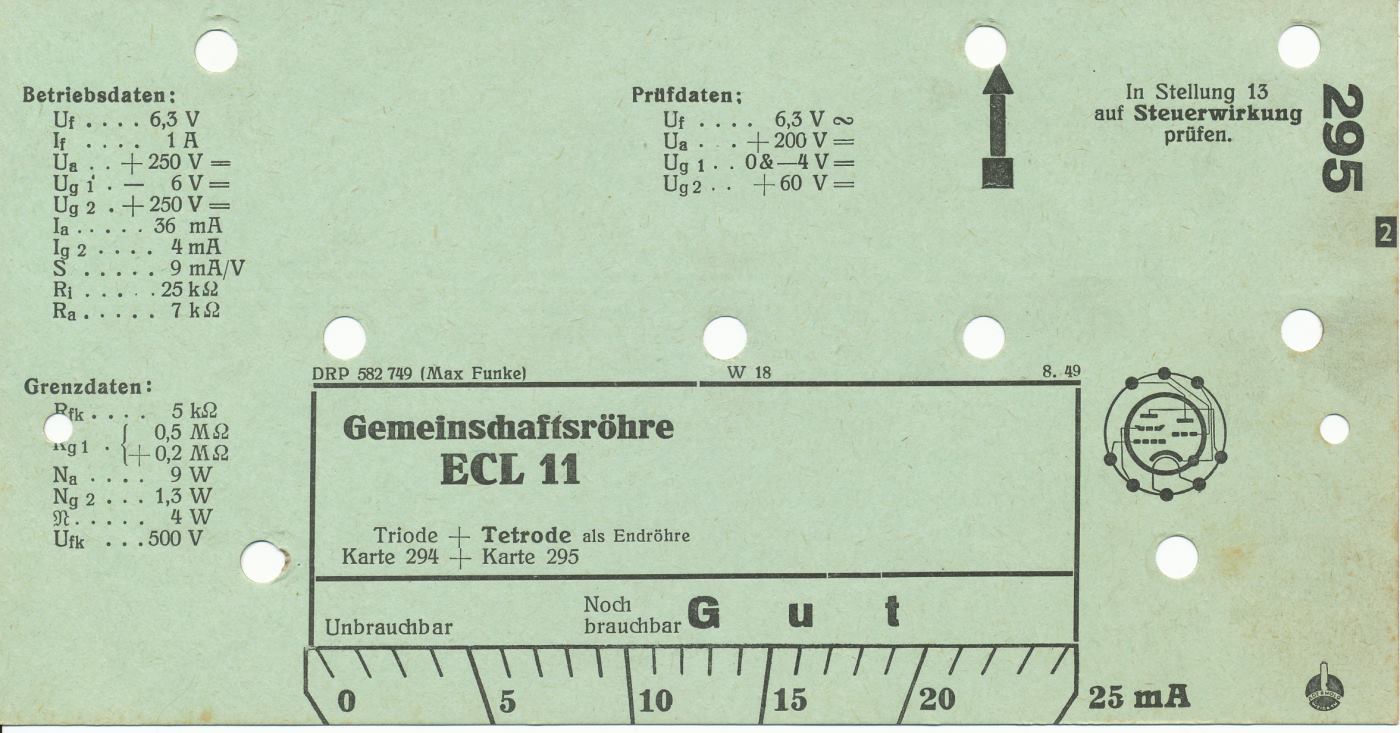

Sorry Funke 295

Sorry

Sorry

Sorry

Sorry

Sorry

Sorry

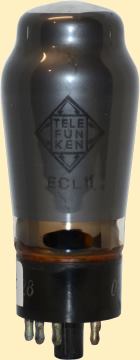

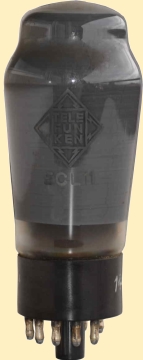

Telefunken
AEG 29W

Telefunken

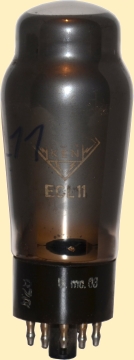

AEG 679WK

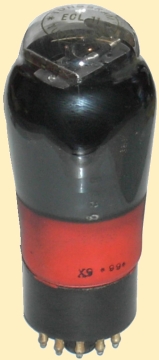

Tungsram
AEG Super 69WK

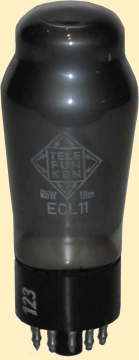

Telefunken +
Blaupunkt 4W649H

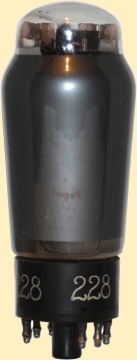

Valvo
EAK 6552W

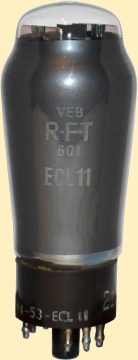

RFT
EAW AT462W

Sorry

Sorry

Sorry

Sorry

Sorry

Sorry

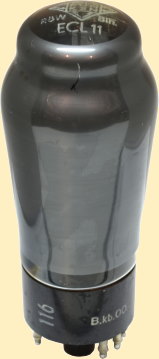

Telefunken
Grundig 246W

Telefunken

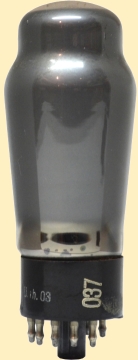

Loewe-Opta 2540W

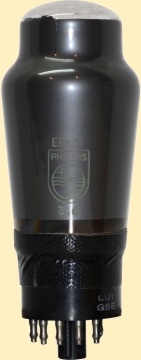

Philips defekt
Lorenz 150W/III

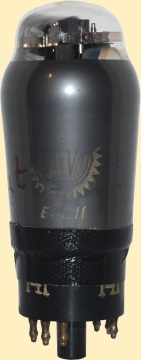

Valvo 60%
Mende MS195W

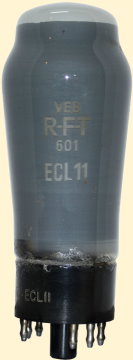

RFT +
Sachsenwerk 502W

RFT +

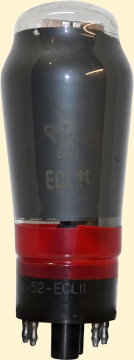

Sachsenwerk 522WM

Sorry

Sorry

Sorry

Sorry

Sorry

Sorry

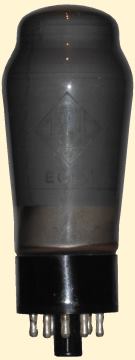

Telefunken +
Stassfurt 400WK

Sator +

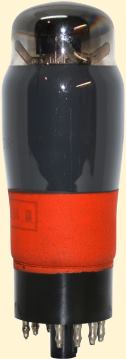

Saba 355WP

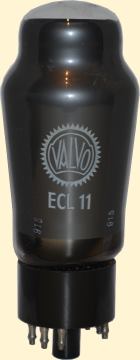

Valvo +
Telefunken 8H65WK

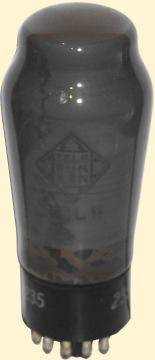

Telefunken +
Telefunken 965WK

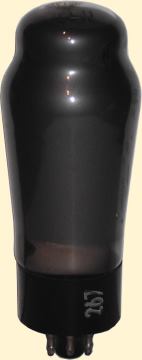

Telefunken
Telefunken 5449WK

Telefunken def
