Röhrenlager



Pentode (5)
HF-ZF-Stufe / RF-IF-Stage

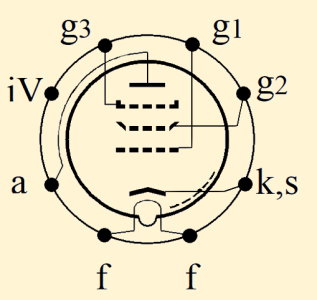

Rimlock 8-Stift Ri-8 (B8A) / European 8-Pin Miniature Ri-8 (B8A)
Uf = 6,3 V; If = 0,33 A; ~ =
Ua = 250 V; Ia = 10 mA
Ug1 = - 2 V; Ug2 = 250 V

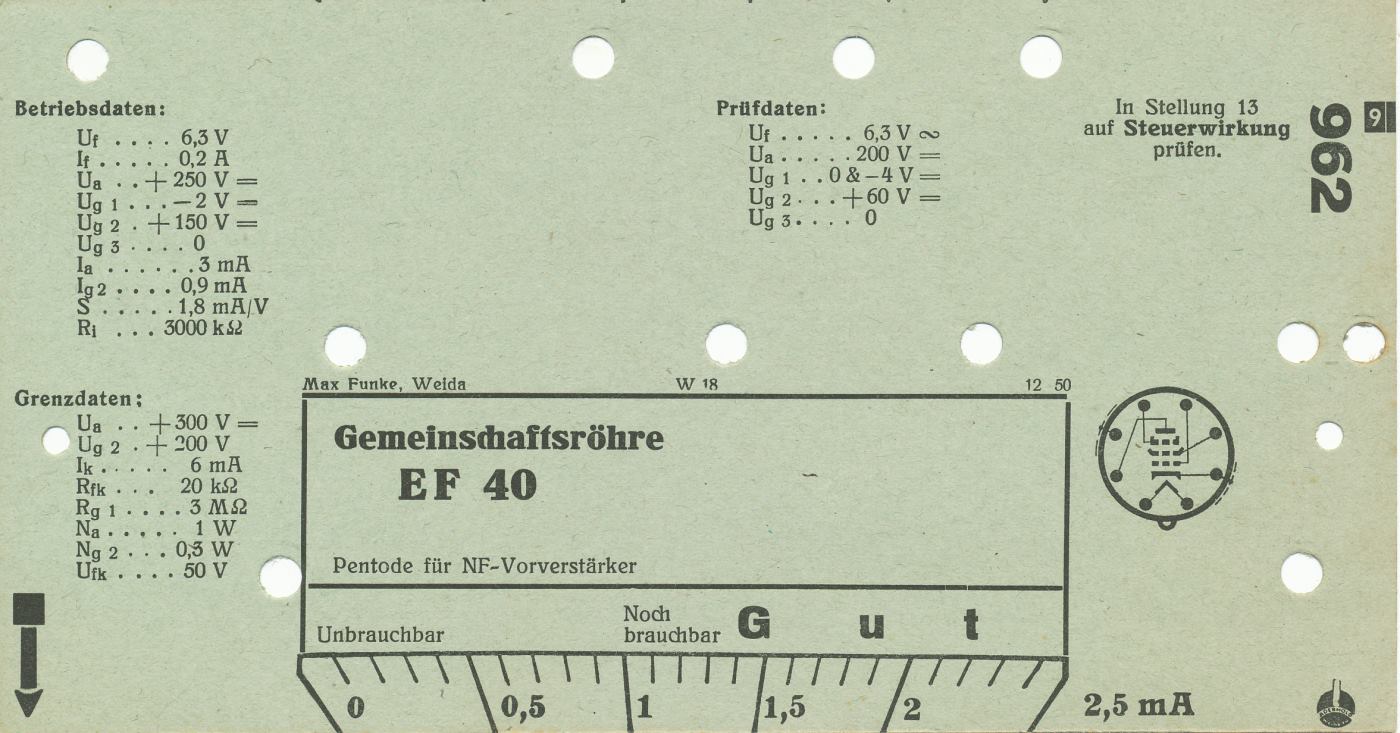

Funke 962







Valvo ?

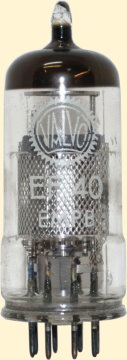

Philips BX700A

Dario +

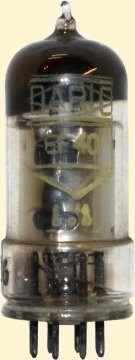

Ralsa 250

??? --

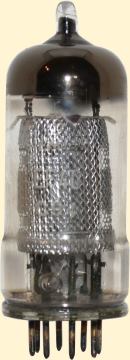

Saba Freiburg WIII
