Pentode (5)
HF-ZF-Stufe / RF-IF-Stage

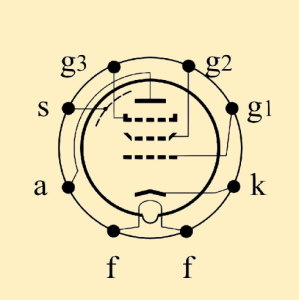

Rimlock 8-Stift Ri-8 (B8A) / European 8-Pin Miniature Ri-8 (B8A)
Uf = 6,3 V; If = 0,33 A; ~ =
Ua = 250 V; Ia = 10 mA
Ug1 = - 2 V; Ug2 = 250 V

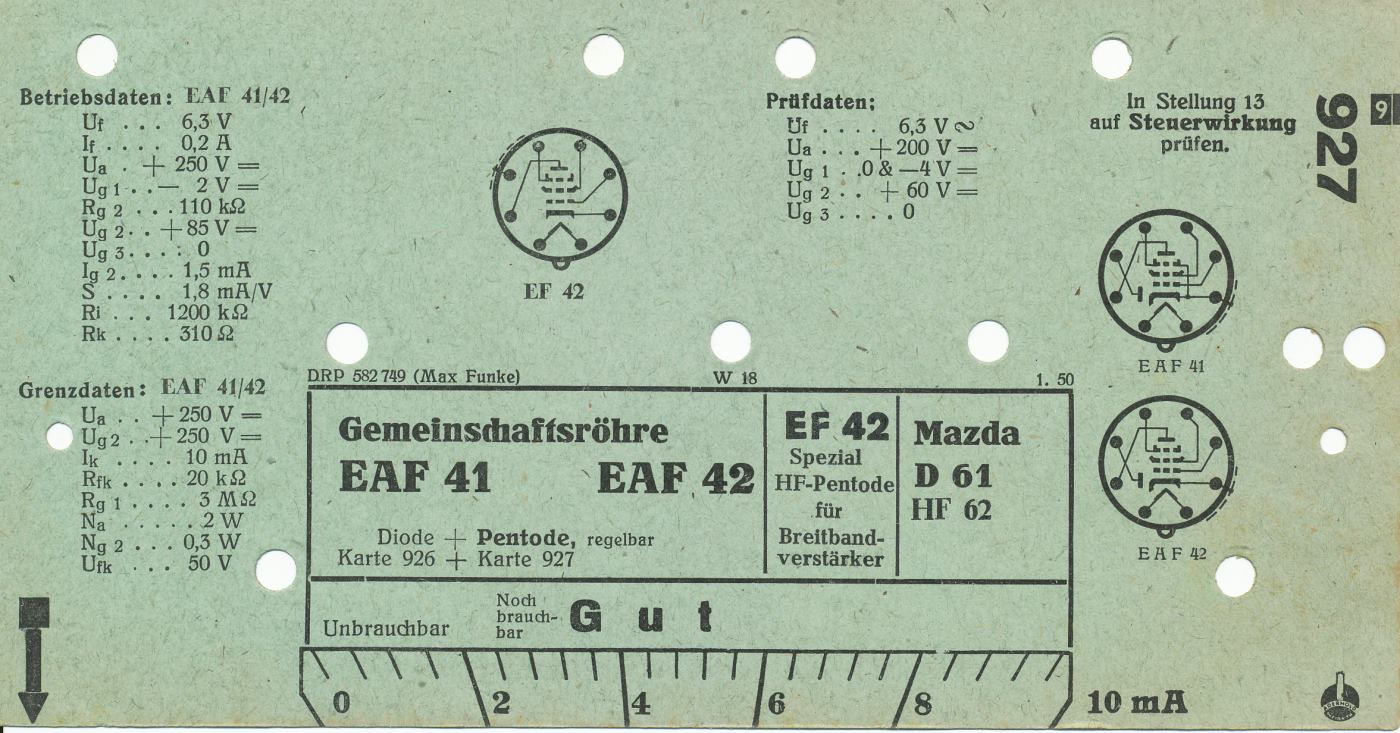

Funke 927

Valvo +

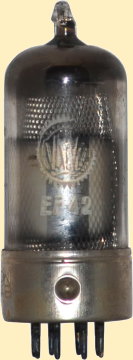

Graetz Super 157W

Mazda +

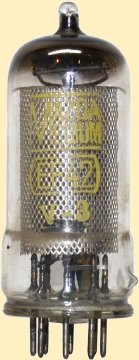

Joba Jubilar

Valvo

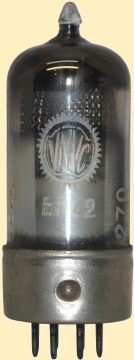

Loewe-Opta 4651W

Philips +

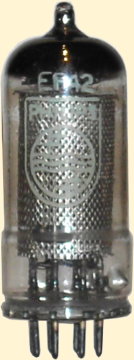

Philips BF621A

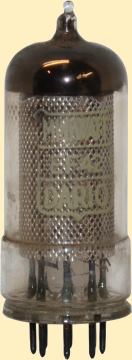

Dario +

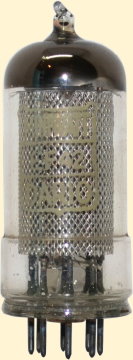

Radiola RA126A FM

Miniwatt

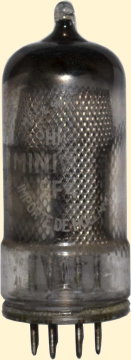

Philips FX624A



Miniwatt +

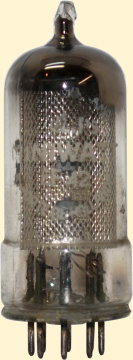

Philips BX700A

Mazda +

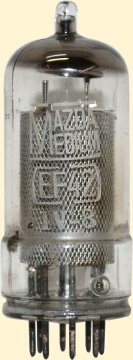

Philips BX700A

Dario +
Radiola 432A

Dario +

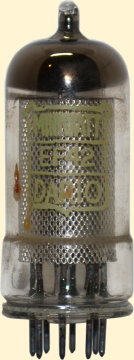

Radiola RA429A

Dario +
