Röhrenlager



Strahlbündel-Endröhre / Beam Power Tube (5)
Endstufe / Power Output

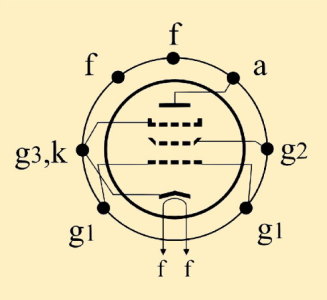

Miniatur 7-Stift Mi-7 (B7G) / Miniature 7-Pin Mi-7 (B7G)
Uf = 6,3 V; If = 0,2 A; ~ =
Ua = 250 V; Ia = 24 mA
Ug1 = - 9 V; Ug2 = 250 V

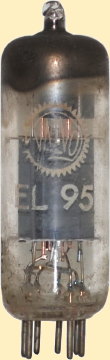

Valvo

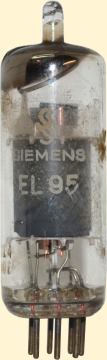

Graetz Fantasia 622

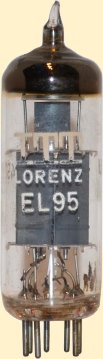

Lorenz +
Grundig Stereo 4016

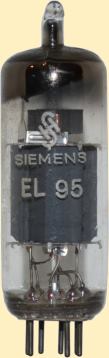

Siemens +
Grundig Stereo 4016

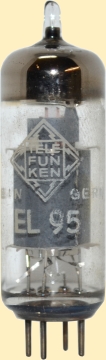

Telefunken +
Nordmende 59-911

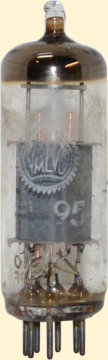

Valvo 20%
Philips Philetta B2D93A

Siemens 60%
Saba Freudenst. 100

Siemens 60%
Saba Freudenst. 100

Siemens 45%
Saba Freudenst. 125

Siemens 65%
Saba Freudenst. 125

Siemens 60%
Lager EL95

Siemens 65%
Lager EL95

Siemens 70%
Lager EL95
